Auxx Lift
Auxx-Lift
ESTIMATED ARRIVAL:
Between 3-12 Business Days (Varies by US Location)
Platform size:3x6
Motor:400
Finish:Silver Gray
Quantity:
Choose options
ESTIMATED ARRIVAL:
Between 3-12 Business Days (Varies by US Location)
Platform size:3x6
Motor:400
Finish:Silver Gray
Quantity:

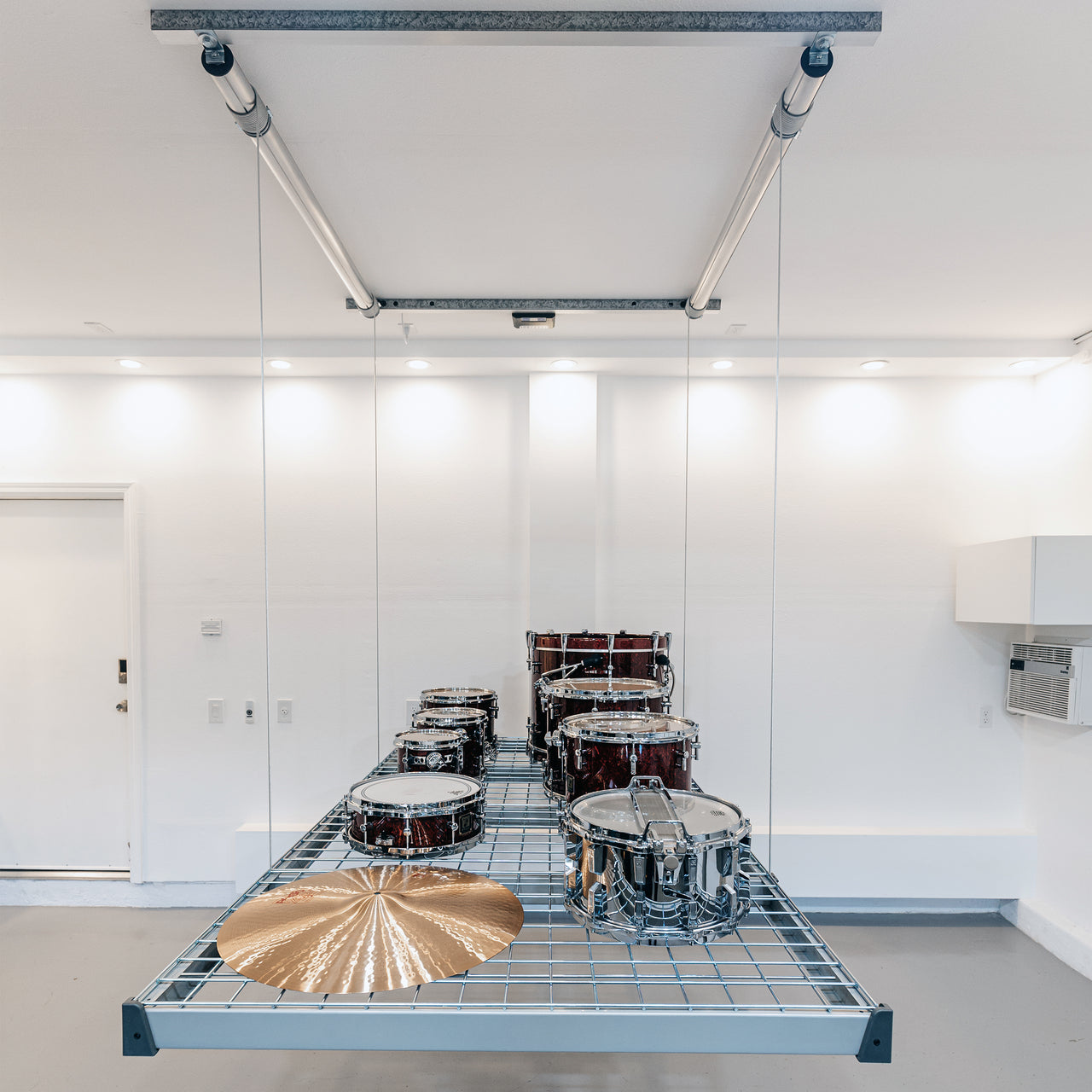

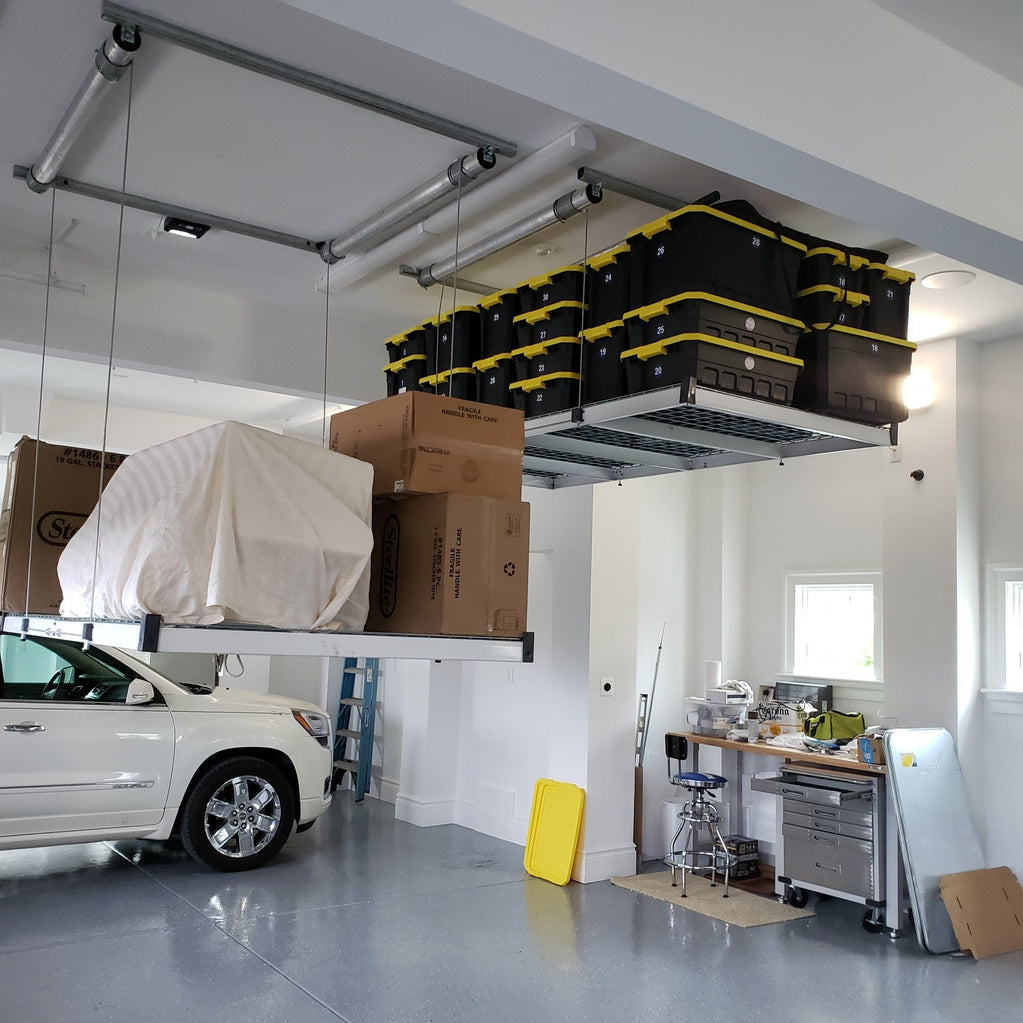

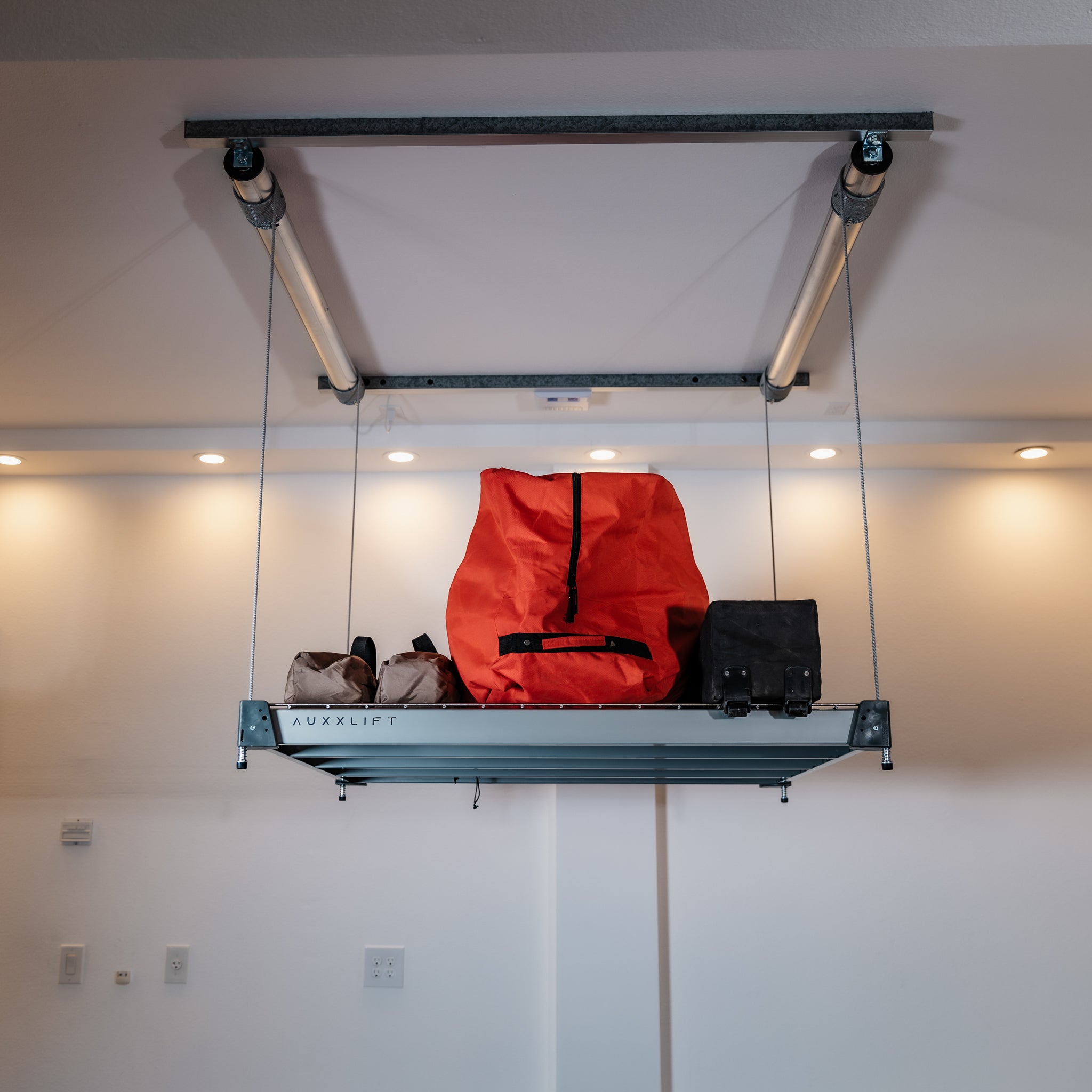

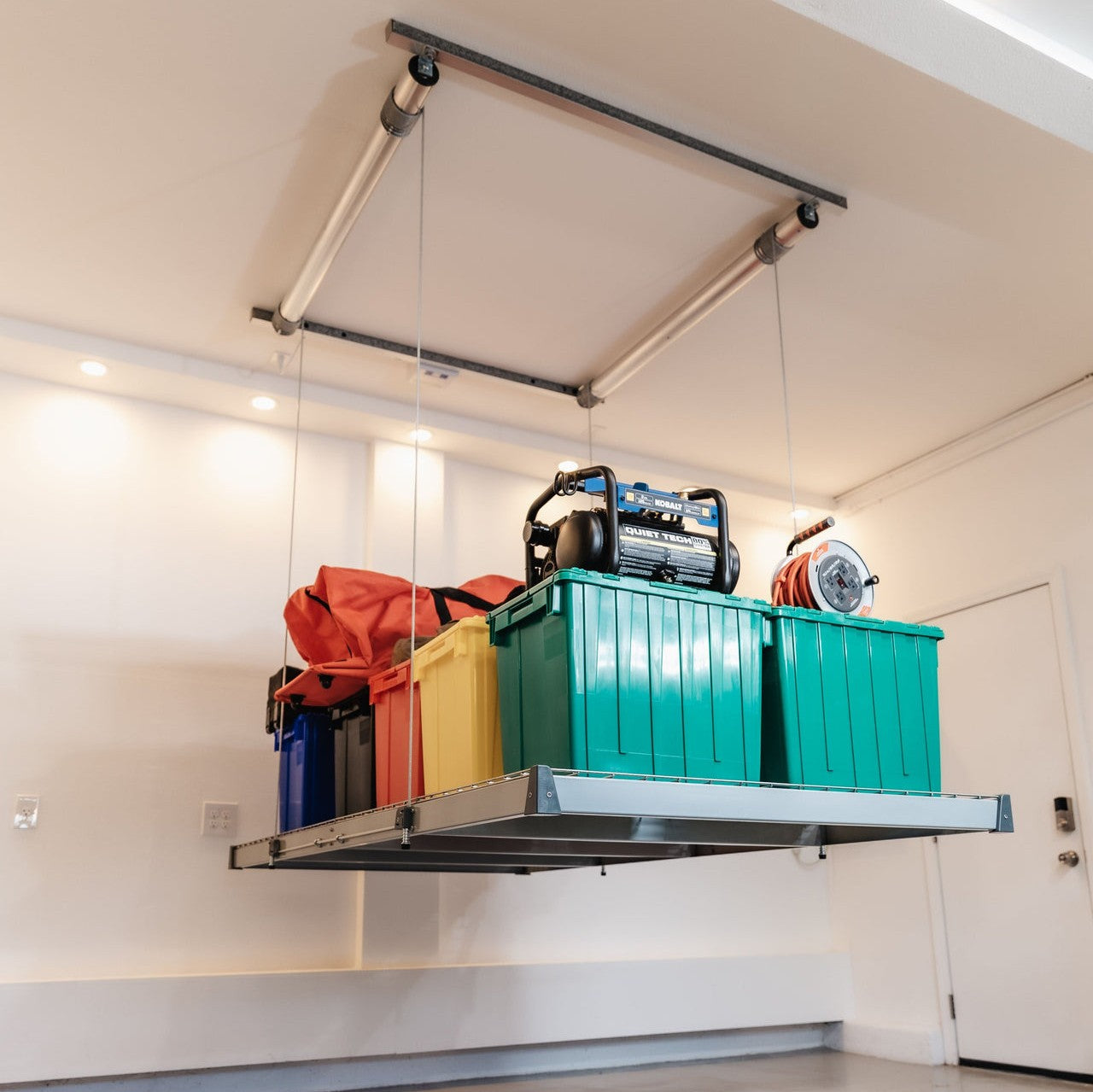

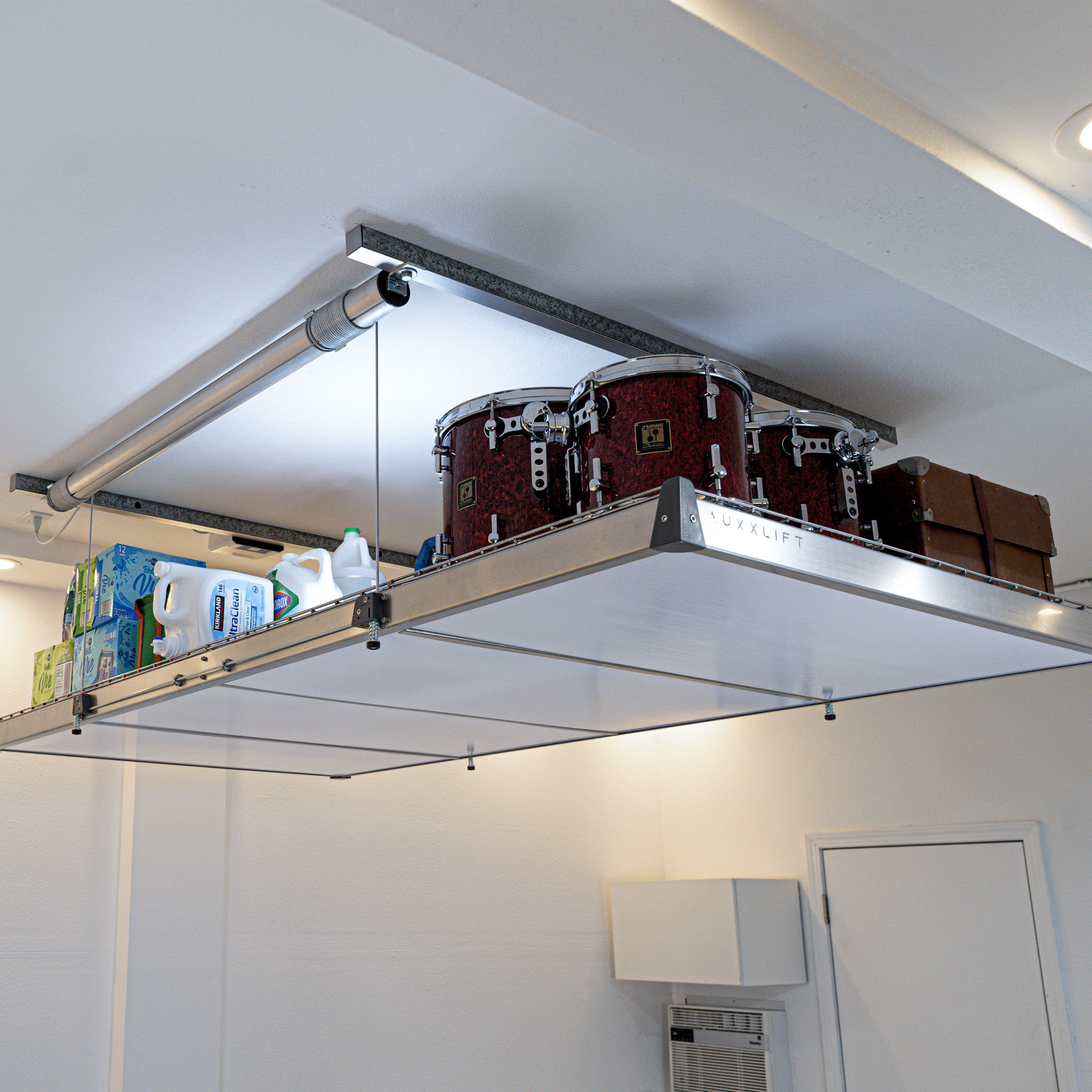

Transform your garage with the Auxx-Lift, the ultimate ceiling storage solution designed for maximum convenience, safety, and durability. Whether it’s tools, seasonal items, or heavy gear, this lift has you covered.
-
Heavy-Duty Capacity: Effortlessly lift up to 600 lbs with robust steel aircraft cables, ensuring reliable performance for even your heaviest items.
-

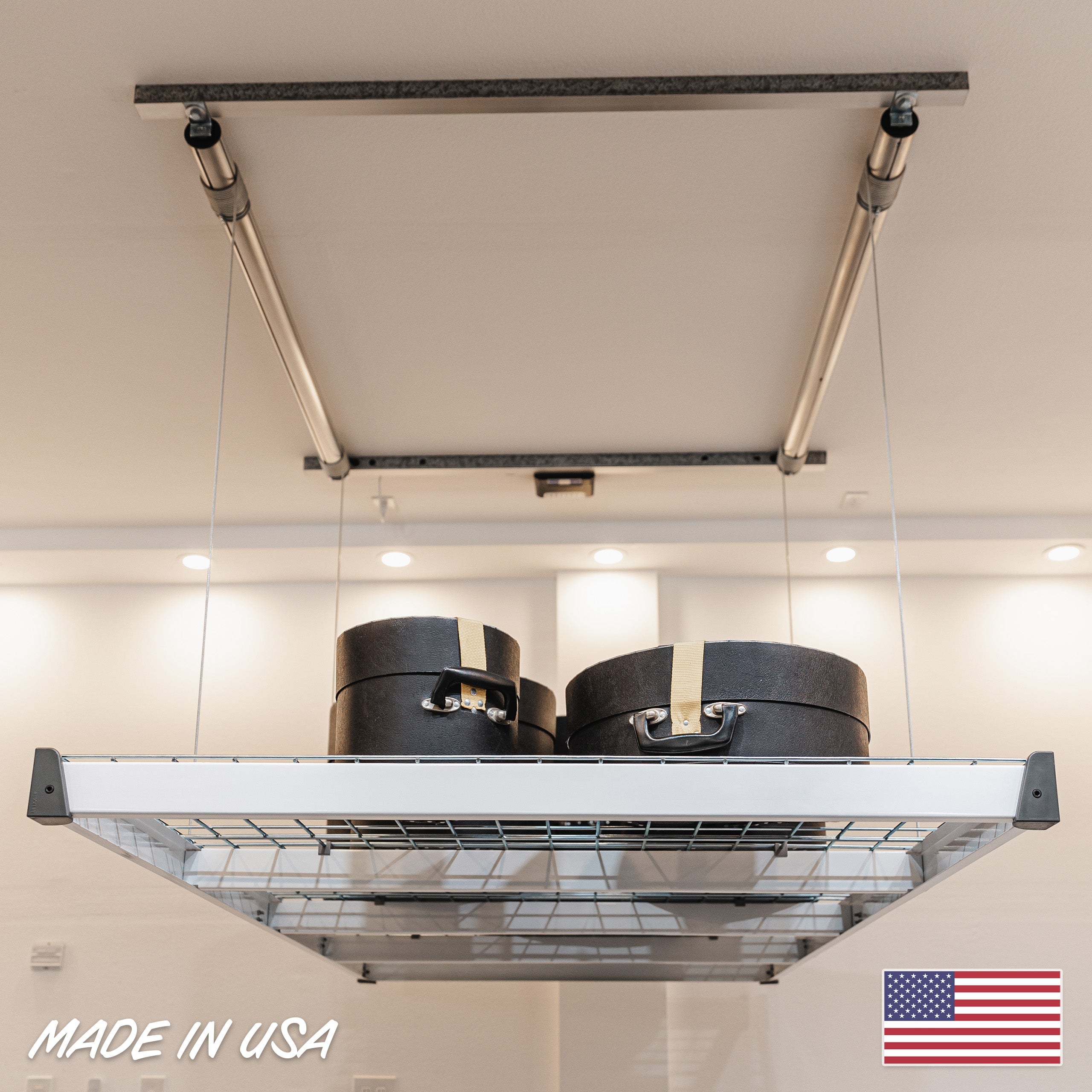

Made in the USA: Engineered with premium materials, including SPAX® fasteners, for lasting durability you can trust.
Wireless Control at Your Fingertips

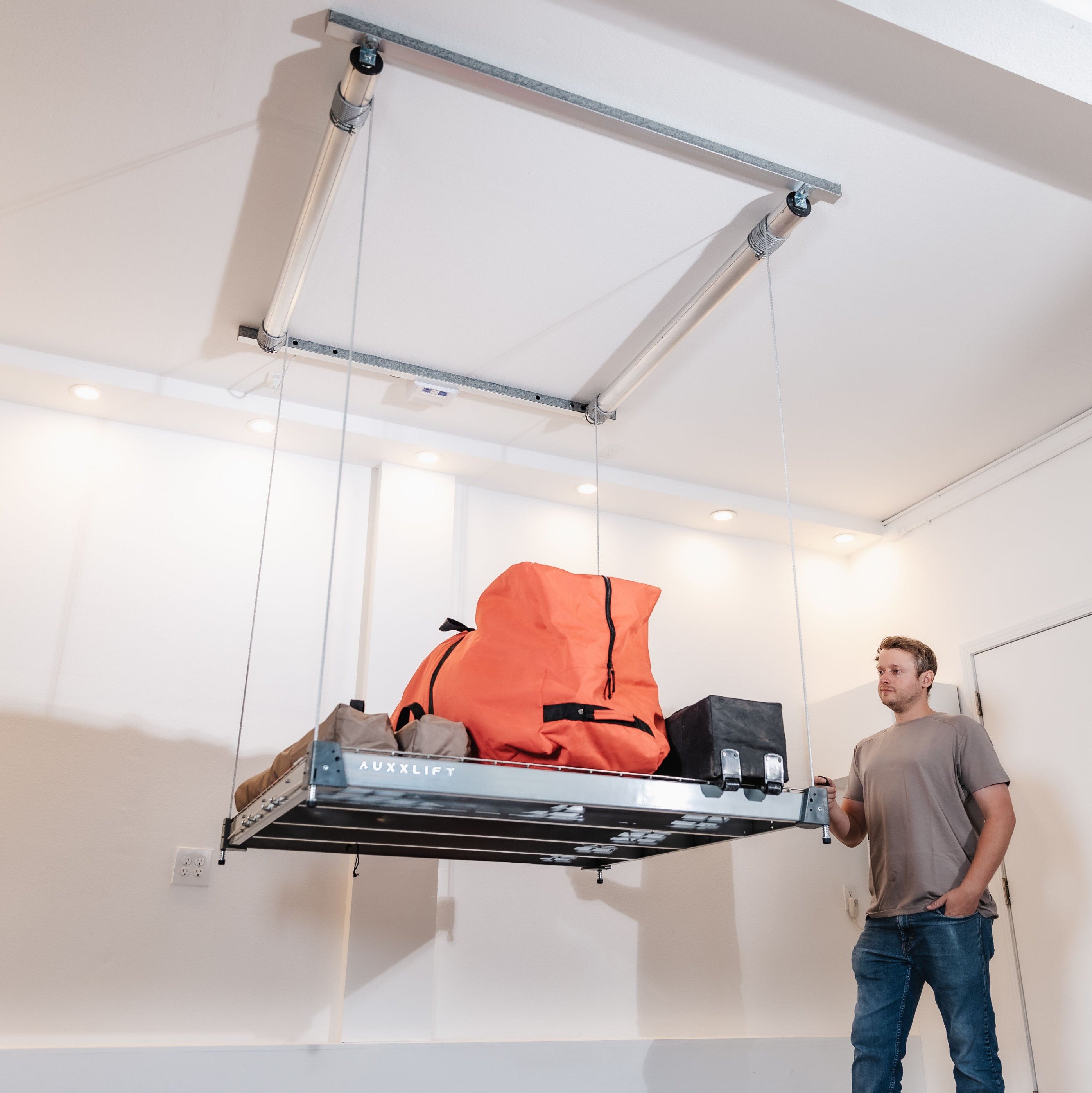

Operate your Auxx-Lift with ease using the wireless remote control. Lower or raise your storage rack from a safe distance, keeping your items accessible and secure.
-
Auto High & Low Points: Program stopping points to avoid collisions with the ceiling or floor.
-
Auto-Stop Safety: The lift automatically halts if the remote disconnects or its battery runs out, ensuring safe operation at all times.
-
Active-Press Technology: Movement is only activated when buttons are deliberately pressed, preventing unintentional operation.
SPECS [400 LBS]
General Specs
-
Model: Auxx-Lift 1400
-
Lifting Capacity: Up to 400 lbs.
-
Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
-
(Multiple Cable Length versions offered. E.g. The 400 lbs version can be equipped with a cable length to allow 18 ft. of travel)
-
-
Min. stored height: 8 in.
-
(The distance measured from your ceiling to the bottom of the platform when in raised position).
-
-
Speed: Avg. 30sec for 9' ceilings
-
(The time it takes to descend/ascend the platform from ground to ceiling).
-

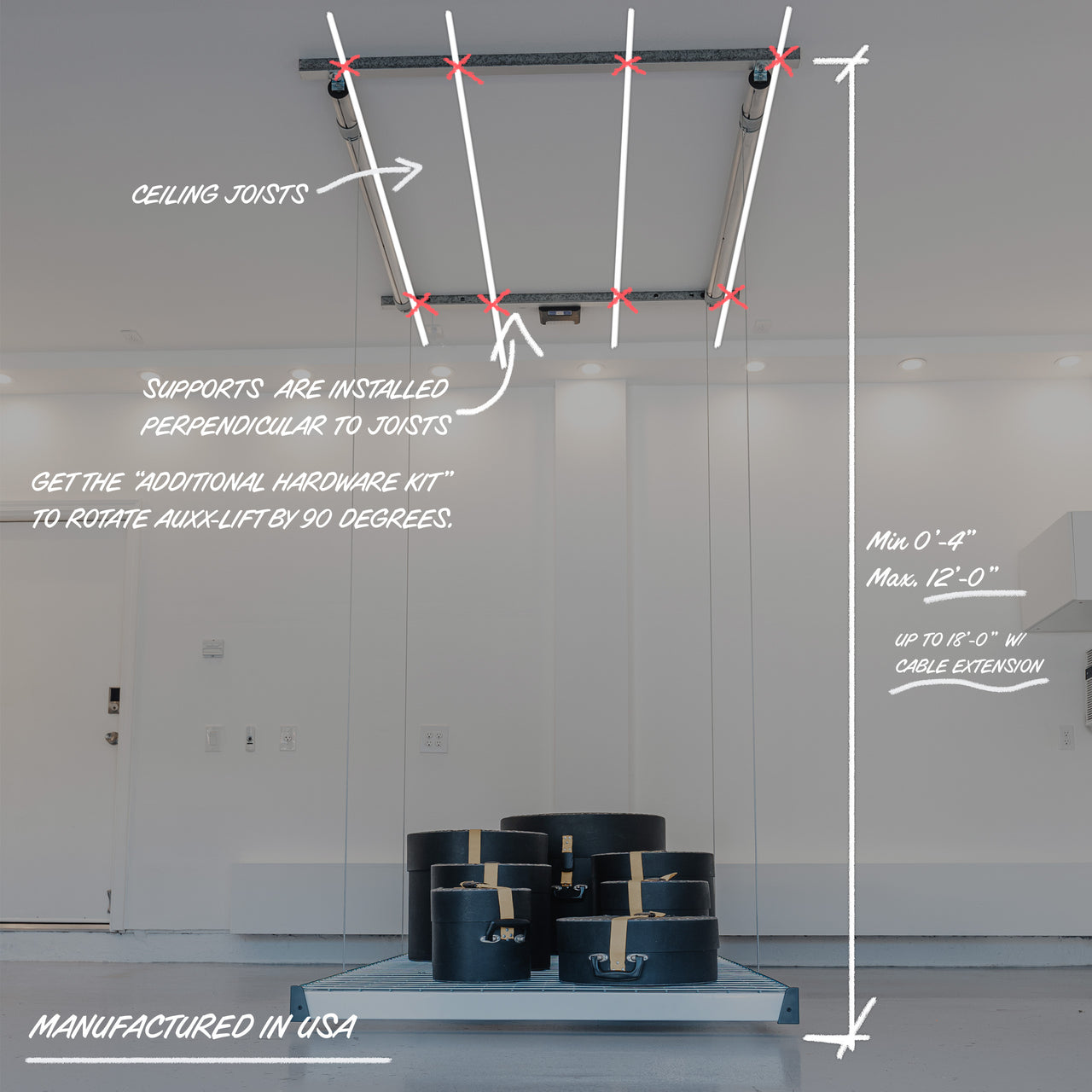

Ceiling Support
-
Type: (2) 1 5/8" x 60" strut channel
-
Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
-
Mounting Area: 5' x 5' over 3 joists/rafters
-

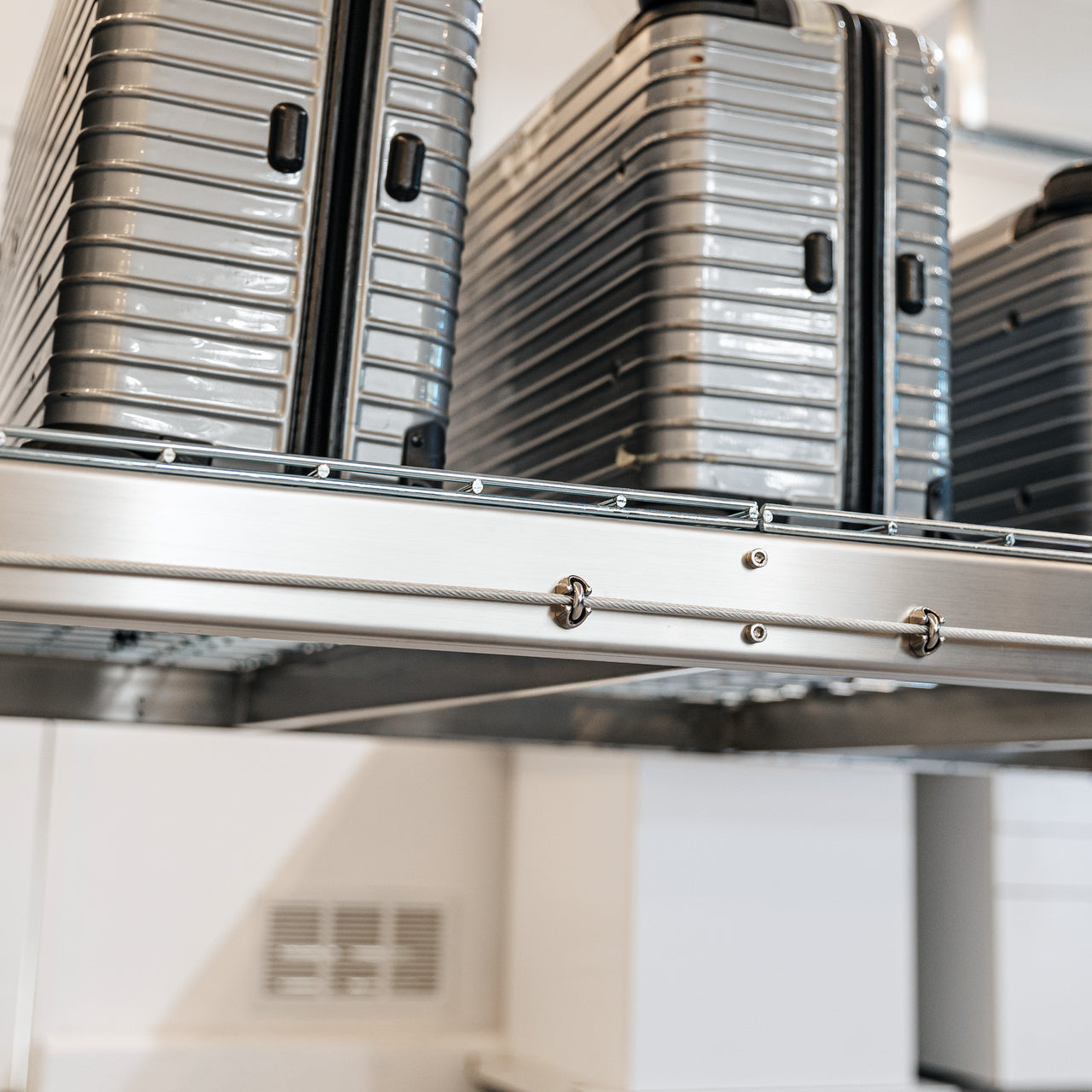

Cable: 1/8” Vinyl-coated Steel 7x19
-
Cable Strength: 2,000 lbs.
-
(Ultimate tensile strength)
-
Operating Requirements
-
Switch Voltage: 110V / 120V
-
Transmitter: 433.92 MHz
-
Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
-
Min. circuit size: 15 amp (Standard household)
Platform Specs
-
Thickness: 2.5 inches
-
Support Frame: C-Channels (15gauge)
-
Face material: 3 x 3 galv. Wire Mesh (4gauge)
Motors
-
Type: IP44 (T-Motor)
-
Rated Power: 235 W
-
Rated Current: 2.2 A
-
Voltage / Phase: 100-120V AC / Single
-

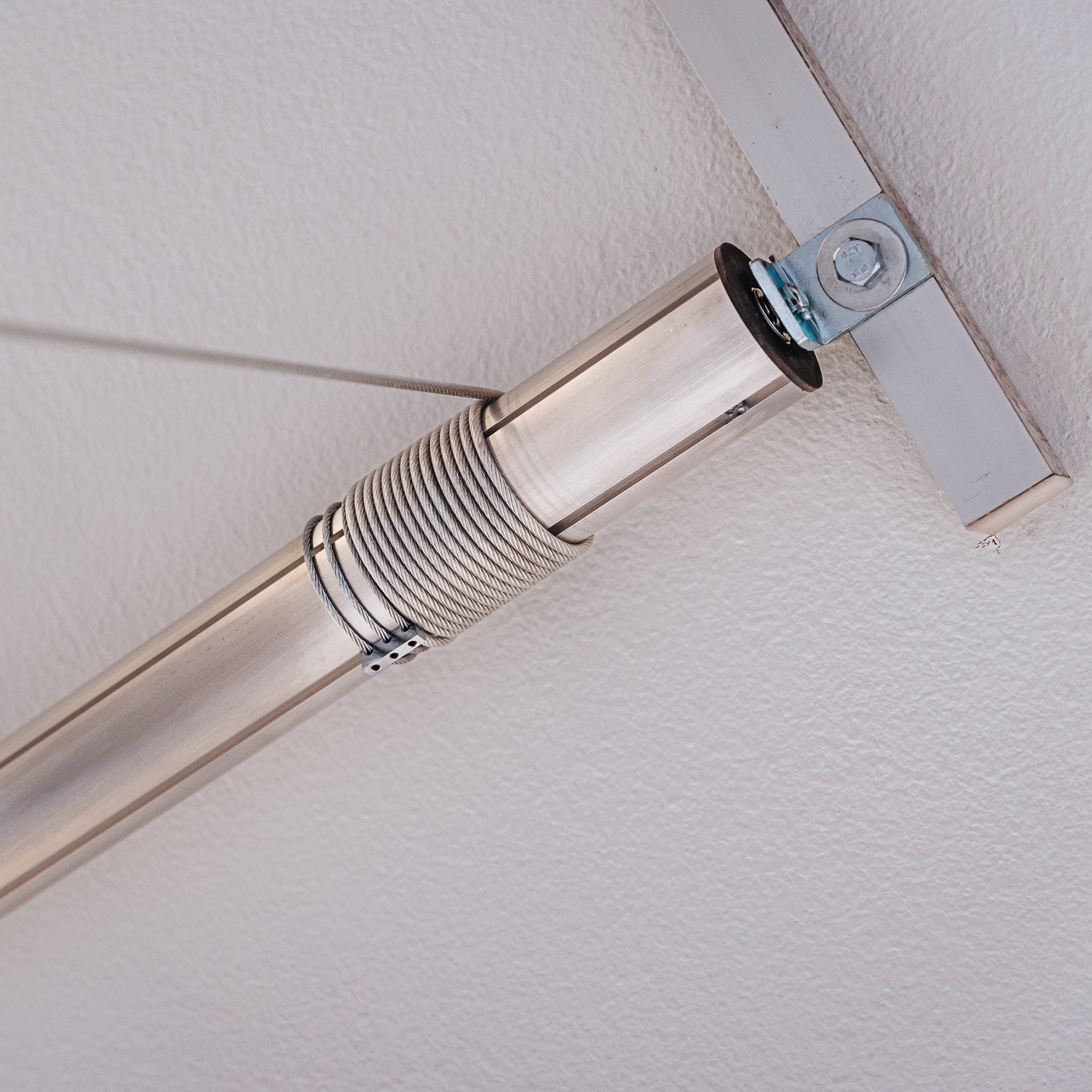

Tube Diameter: 70mm (2-3/4 in)
-
Motor speed: 13 rpm
-
Duty Cycle @ Max. Capacity: 3 min on, 15 min off
-
(If you run the Auxx-Lift continuously for more than 3 min at a time, the motors will switch off automatically and require to cool down for 15 min. or less).
-
Size and Weight
-
Dimensions: 3x6 ft., 3x8 ft., 4x6 ft., 4x8 ft.
-
Weight: 128 lbs.

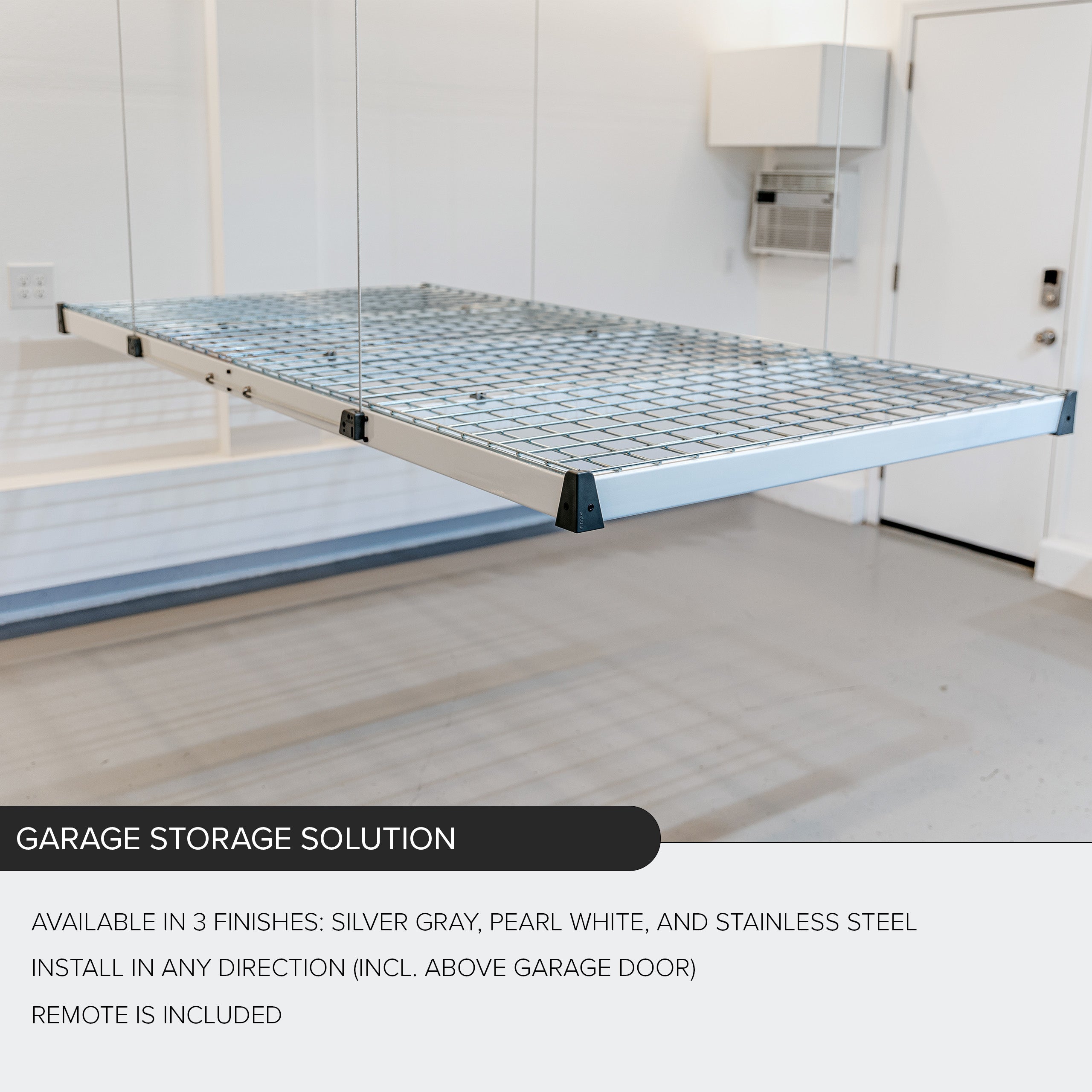

Available Finishes
-
(*Pearl-White and Stainless-Steel finish is not available for all platform sizes).
What's in the box
-
(2) Motors
-
Controller
-
Remote Control
-
(2) C-Strut Channels
-
Platform
-
Mounting Hardware
SPECS [600 LBS]
Free Shipping
-
Model: Auxx-Lift 1600
-
Lifting Capacity: Up to 600 lbs.
-
Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
-
(Multiple Cable Length Offered. E.g. The 400 lbs. model can be equipped with a cable length that allow 18 ft. of travel).
-
-
Min. stored height: 8 in
-
(The distance measured from your ceiling to the bottom of the platform when in raised position).
-
-
Speed: Avg. 30sec for 9' ceilings
-
(The time it takes to descend/ascend the platform from ground to ceiling).
-
Ceiling Support
-
Type: (2) 1 5/8" x 60" strut channel
-
Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
-
Mounting Area: 5' x 5' over 3 joists/rafters
-
Cable: 3/16” Vinyl-coated Steel 7x19
-
Cable Strength: 4,200 lbs.
-
(Ultimate tensile strength)
-
Operating Requirements
-
Switch Voltage: 110V / 120V
-
Transmitter: 433.92 MHz
-
Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
-
Min. circuit size: 15 amp (Standard household)
Platform Specs
-
Thickness: 2.5 inches
-
Support Frame: C-Channels (15 gauge)
-
Face material: 3x3 galv. Wire Mesh (4 gauge)
Motors
-
Type: IP44 (T-Motor)
-
Rated Power: 680 W
-
Rated Current: 6.0 A
-
Voltage / Phase: 100-120V AC / Single
-
Tube Diameter: 85mm (3-3/8 in)
-
Motor speed: 11 rpm
-
Duty Cycle @ Max. Capacity: 3 min on, 15 min off
Size and Weight
-
Dimensions:3ft x 6ft, 3ft x 8ft, 4ft x 6ft, 4ft x 8ft
-
Weight:128 lbs
Available Finishes
-
(*Pearl-White and Stainless-Steel finish is not available for all platform sizes).
What's in the box
-
2 Motors
-
Controller
-
Remote Control
-
2 C-Strut Channels
-
Platform
-
Mounting Hardware
INSTALLATION SERVICES
With straightforward installation instructions and professional installer options available, getting started is hassle-free.

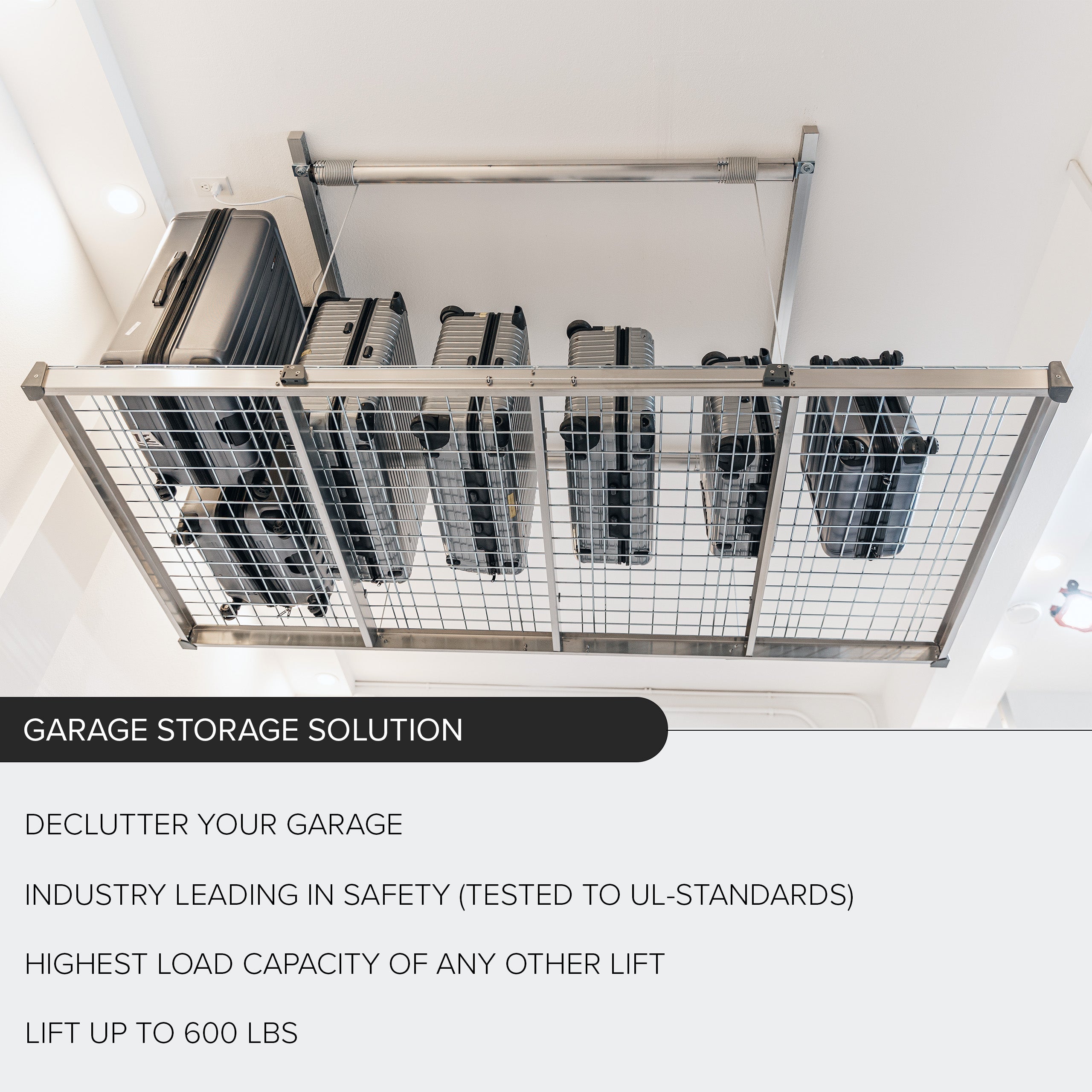

Certified Safety Standards: The Auxx-Lift is the only ceiling lift tested to UL Standards, delivering unmatched safety for your storage needs.
We have partnered with the for Assembly Help company for installation and assembly. They have local service professionals available for hire across the United States with expertise in installing this product.
Here is how it works:_______________________
SHIPPING & DELIVERY
Free Shipping
This product ships free anywhere within the U.S. (excluding Hawaii & Alaska)
Fast Processing
Orders placed Monday through Friday before 1 PM PT typically ship the same day, excluding holidays, weekends or any unforeseen event.
Quick Delivery
Most orders arrive within 2 to 7 business days, depending on your location.
Order Tracking
You’ll receive a shipping confirmation email with tracking details as soon as your order ships.
Delivery Guarantee
If your order arrives damaged, please contact us immediately so we can assist you.
FAQ
Can I install the Auxx-Lift myself?
The installation is similar to that of an automatic garage door opener. You work overhead on a ladder or scaffold and you have to find the ceiling's joists. You have to install the 2 mounting rails to the ceiling's supports. It usually take a professional installer about 2 hours.
How was the Auxx-Lift Series developed?
Auxx-lift has been developed over the last 8 years and has undergone many revisions and product testing to UL-standards to make it a safe and trouble-free product.
It is a revolutionary home improvement and storage product. We eliminated the shortcomings of other storage products and adopted special features such as a remote-control and also bring you safety, excellent design and high quality at the lowest possible price.
WARRANTY
Coverage
The manufacturer warrants this product against defects in materials and workmanship that occur during normal personal, household use when installed and operated according to the Owner’s Manual.
Warranty Period
2 years from the original date of purchase.
What’s Included
If a defect is identified, the manufacturer will provide replacement parts or, at its discretion, replace the product entirely. Replacement parts may be new or reconditioned. If a full replacement is provided, it may be with a new or refurbished unit of the same or similar model. The defective product must be returned before any replacement is issued.
How to Obtain Service
To request warranty service, proof of purchase (including date and place of purchase) is required. The manufacturer’s service team will assist in diagnosing the issue and coordinating the shipment of replacement parts or products after the defective item has been returned.
Exclusions
This warranty does not cover:
-
Commercial use or improper installation
-
Accidents, misuse, abuse, or insufficient maintenance
-
Unauthorized repairs or modifications
-
Use of non-approved attachments or accessories
-
Electrical issues such as pinched wires, broken cables, power outages, or use of extension cords
-
Missing parts, discounted or clearance items, or open-box/final-sale products
-
Damage caused by fire, flood, natural disasters, or failure to follow the Owner’s Manual
Shipping costs for warranty replacements are the responsibility of the customer. This warranty is provided solely by the manufacturer. No other express warranties apply.
